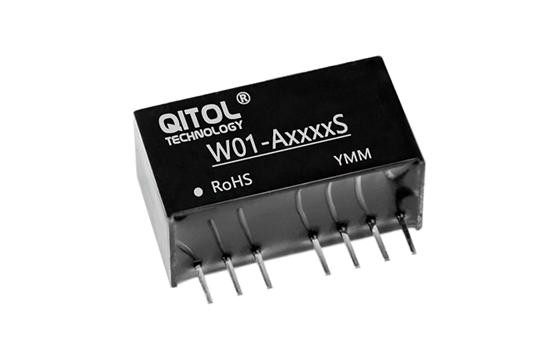

W01-A_S Series
2: 1 wide voltage input, single column direct insertion SIP package. Product Features: Working temperature: -40 ℃ to+85 ℃ ◆ Isolation voltage: 1500VDC ◆ Sustainable short-circuit protection ◆ Compliant with EN62368, UL62368 and other standards ——Widely used in communication equipment, instruments, and industrial electronics.
| Model | Diagram | Power | Input | Vout | Iout | No.of Outputs | Isolation | Package | Dimension(mm) | Datasheet | Sample |
|---|---|---|---|---|---|---|---|---|---|---|---|
| W01-A0505S |
|
1W | 5（4.5-9）VDC | ±5VDC | ±100mA | 2 | 1500VDC | SIP | 22.0*9.5*12.0 | ||
| W01-A0509S |
|
1W | 5（4.5-9）VDC | ±9VDC | ±56mA | 2 | 1500VDC | SIP | 22.0*9.5*12.0 | ||
| W01-A0512S |
|
1W | 5（4.5-9）VDC | ±12VDC | ±42mA | 2 | 1500VDC | SIP | 22.0*9.5*12.0 | ||
| W01-A0515S |
|
1W | 5（4.5-9）VDC | ±15VDC | ±33mA | 2 | 1500VDC | SIP | 22.0*9.5*12.0 |
-
