Wide voltage input DIP
This series is a dual in-line DIP package with 2:1 and 4:1 wide voltage inputs Product Features: 1. Wide voltage input 2. High conversion efficiency 3. Isolation voltage: 1500VDC, 3000VDC 4. Compliant with EN62368, UL62368 and other standards ——Widely used in industries such as communication equipment, instrumentation, and industrial electronics.
| Model | Diagram | Power | Input | Vout | Iout | No.of Outputs | Isolation | Package | Dimension(mm) | Datasheet | Samples Request |
|---|---|---|---|---|---|---|---|---|---|---|---|

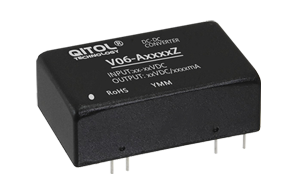

| V06-A_Z |
|
6W | 4.5-75VDC | Unfold | Unfold | 2 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-A0505Z |
|
6W | 5 (4.5-9)VDC | ±5VDC | ±600mA | 2 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-A0509Z |
|
6W | 5 (4.5-9)VDC | ±9VDC | ±333mA | 2 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-A0512Z |
|
6W | 5 (4.5-9)VDC | ±12VDC | ±250mA | 2 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-A0515Z |
|
6W | 5 (4.5-9)VDC | ±15VDC | ±200mA | 2 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-A0524Z |
|
6W | 5 (4.5-9)VDC | ±24VDC | ±125mA | 2 | 1500VDC | DIP | 32*20*10.8 | ||

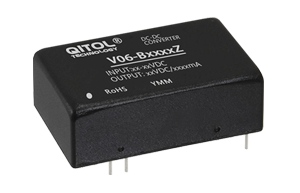

| V06-B_Z |
|
6W | 4.5-75VDC | Unfold | Unfold | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-B0503Z |
|
6W | 5 (4.5-9)VDC | 3.3VDC | 1500mA | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-B0505Z |
|
6W | 5 (4.5-9)VDC | 5VDC | 1200mA | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-B0509Z |
|
6W | 5 (4.5-9)VDC | 9VDC | 667mA | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-B0512Z |
|
6W | 5 (4.5-9)VDC | 12VDC | 500mA | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-B0515Z |
|
6W | 5 (4.5-9)VDC | 15VDC | 400mA | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-B0524Z |
|
6W | 5 (4.5-9)VDC | 24VDC | 250mA | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-A_Y |
|
6W | 9-75VDC | Unfold | Unfold | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A1205Y |
|
6W | 12 (9-18)VDC | ±5VDC | ±600mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A1212Y |
|
6W | 12 (9-18)VDC | ±12VDC | ±250mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A1215Y |
|
6W | 12 (9-18)VDC | ±15VDC | ±200mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A1224Y |
|
6W | 12 (9-18)VDC | ±24VDC | ±125mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A2405Y |
|
6W | 24 (18-36)VDC | ±5VDC | ±600mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A2412Y |
|
6W | 24 (18-36)VDC | ±12VDC | ±250mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A2415Y |
|
6W | 24 (18-36)VDC | ±15VDC | ±200mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A2424Y |
|
6W | 24 (18-36)VDC | ±24VDC | ±125mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||

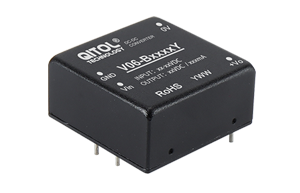

| V06-B_Y |
|
6W | 9-75VDC | Unfold | Unfold | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V20-B_Y |
|
20W | 9-75VDC | Unfold | Unfold | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V20-B1203Y |
|
20W | 12 (9-18)VDC | 3.3VDC | 5000mA | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V20-B1205Y |
|
20W | 12 (9-18)VDC | 5VDC | 4000mA | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V20-B1212Y |
|
20W | 12 (9-18)VDC | 12VDC | 1667mA | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V20-B1215Y |
|
20W | 12 (9-18)VDC | 15VDC | 1333mA | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V20-B1224Y |
|
20W | 12 (9-18)VDC | 24VDC | 833mA | 1 | 1500VDC | DIP | 25.4*25.4*11.7 |
-
