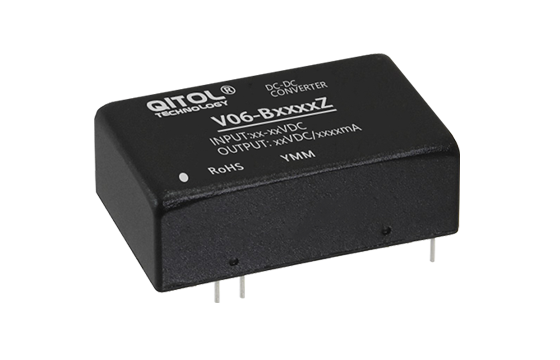

V06-B_Z Series 6W
International standard DIP package, 2:1 wide voltage input range, dual output Product Features: 1. Working temperature range: -40 ℃ to+85 ℃ 2. Isolation voltage: 1500VDC 3. Output overvoltage, overcurrent, short circuit protection, etc 4. Meets EN62368 certification and UL62368 certification ——Mainly used for: Fields such as instrumentation, industrial electronics, medical, industrial control, power, instrumentation, communication, etc
| Model | Diagram | Power | Input | Vout | Iout | No.of Outputs | Isolation | Package | Dimension(mm) | Datasheet | Sample |
|---|---|---|---|---|---|---|---|---|---|---|---|
| V06-B0503Z |
|
6W | 5 (4.5-9)VDC | 3.3VDC | 1500mA | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-B0505Z |
|
6W | 5 (4.5-9)VDC | 5VDC | 1200mA | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-B0509Z |
|
6W | 5 (4.5-9)VDC | 9VDC | 667mA | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-B0512Z |
|
6W | 5 (4.5-9)VDC | 12VDC | 500mA | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-B0515Z |
|
6W | 5 (4.5-9)VDC | 15VDC | 400mA | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-B0524Z |
|
6W | 5 (4.5-9)VDC | 24VDC | 250mA | 1 | 1500VDC | DIP | 32*20*10.8 |
-
