SIP/SMD Rregulated Output
Suitable for pure digital circuits, general low-frequency analog circuits, relay drive circuits, data exchange circuits, etc. Key Features: ● Operating temperature range: -40 to +85℃ ● The isolation voltage can meet the requirements of: 1000VDC-3000VDC ● Sustainable short-circuit protection ● Compliant with UL62368 certification and EN62368 certification —— Widely applied in: Industrial control communication, power, instrumentation, medical electronics, rail transit, and other industries.
| Model | Diagram | Power | Input | Vout | Iout | No.of Outputs | Isolation | Package | Dimension(mm) | Datasheet | Samples Request |
|---|---|---|---|---|---|---|---|---|---|---|---|
| D0.75-IB_S |
|
0.75W | 4.75-25.2VDC | Unfold | Unfold | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D0.75-IB0503S |
|
0.75W | 5 (4.75-5.25)VDC | 3.3VDC | 200mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D0.75-IB0505S |
|
0.75W | 5 (4.75-5.25)VDC | 5VDC | 150mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D0.75-IB0509S |
|
0.75W | 5 (4.75-5.25)VDC | 9VDC | 83mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D0.75-IB0512S |
|
0.75W | 5 (4.75-5.25)VDC | 12VDC | 62mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D0.75-IB0515S |
|
0.75W | 5 (4.75-5.25)VDC | 15VDC | 50mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D0.75-IB1203S |
|
0.75W | 12 (11.4-12.6)VDC | 3.3VDC | 200mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D0.75-IB1205S |
|
0.75W | 12 (11.4-12.6)VDC | 5VDC | 150mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D0.75-IB1212S |
|
0.75W | 12 (11.4-12.6)VDC | 12VDC | 62mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D0.75-IB1215S |
|
0.75W | 12 (11.4-12.6)VDC | 15VDC | 50mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D0.75-IB2403S |
|
0.75W | 24 (22.8-25.2)VDC | 3.3VDC | 200mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D0.75-IB2405S |
|
0.75W | 24 (22.8-25.2)VDC | 5VDC | 150mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D0.75-IB2412S |
|
0.75W | 24 (22.8-25.2)VDC | 12VDC | 62mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D0.75-IB2415S |
|
0.75W | 24 (22.8-25.2)VDC | 15VDC | 50mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D1-IB_LS |
|
1W | 4.75-25.2VDC | Unfold | Unfold | 1 | 1500VDC | SIP | 19.6*6.0*10.16 | ||
| D1-IB0303LS |
|
1W | 3.3 (3.14-3.47)VDC | 3.3VDC | 250mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0305LS |
|
1W | 3.3 (3.14-3.47)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0309LS |
|
1W | 3.3 (3.14-3.47)VDC | 9VDC | 111mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0312LS |
|
1W | 3.3 (3.14-3.47)VDC | 12VDC | 84mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0315LS |
|
1W | 3.3 (3.14-3.47)VDC | 15VDC | 67mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0503LS |
|
1W | 5 (4.75-5.25)VDC | 3.3VDC | 250mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0505LS |
|
1W | 5 (4.75-5.25)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0509LS |
|
1W | 5 (4.75-5.25)VDC | 9VDC | 111mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0512LS |
|
1W | 5 (4.75-5.25)VDC | 12VDC | 84mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0515LS |
|
1W | 5 (4.75-5.25)VDC | 15VDC | 67mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0524LS |
|
1W | 5 (4.75-5.25)VDC | 24VDC | 43mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB1203LS |
|
1W | 12 (11.4-12.6)VDC | 3.3VDC | 250mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB1205LS |
|
1W | 12 (11.4-12.6)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB1209LS |
|
1W | 12 (11.4-12.6)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB1212LS |
|
1W | 12 (11.4-12.6)VDC | 12VDC | 84mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB1215LS |
|
1W | 12 (11.4-12.6)VDC | 15VDC | 67mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB1224LS |
|
1W | 12 (11.4-12.6)VDC | 24VDC | 43mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB1503LS |
|
1W | 15 (14.25-15.75)VDC | 3.3VDC | 250mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB1505LS |
|
1W | 15 (14.25-15.75)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB1509LS |
|
1W | 15 (14.25-15.75)VDC | 9VDC | 111mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB1512LS |
|
1W | 15 (14.25-15.75)VDC | 12VDC | 84mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB1515LS |
|
1W | 15 (14.25-15.75)VDC | 15VDC | 67mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB1524LS |
|
1W | 15 (14.25-15.75)VDC | 24VDC | 43mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB2403LS |
|
1W | 24 (22.8-25.2)VDC | 3.3VDC | 250mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB2405LS |
|
1W | 24 (22.8-25.2)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB2409LS |
|
1W | 24 (22.8-25.2)VDC | 9VDC | 111mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB2412LS |
|
1W | 24 (22.8-25.2)VDC | 12VDC | 84mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB2415LS |
|
1W | 24 (22.8-25.2)VDC | 15VDC | 67mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB2424LS |
|
1W | 24 (22.8-25.2)VDC | 24VDC | 43mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||

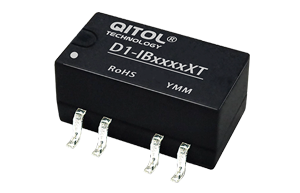

| D1-IB_XT |
|
1W | 4.75-25.2VDC | Unfold | Unfold | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB0503XT |
|
1W | 5 (4.75-5.25)VDC | 3.3VDC | 303mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB0505XT |
|
1W | 5 (4.75-5.25)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB0509XT |
|
1W | 5 (4.75-5.25)VDC | 9VDC | 111mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB0512XT |
|
1W | 5 (4.75-5.25)VDC | 12VDC | 84mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB0515XT |
|
1W | 5 (4.75-5.25)VDC | 15VDC | 67mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB1205XT |
|
1W | 12 (11.4-12.6)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB1212XT |
|
1W | 12 (11.4-12.6)VDC | 12VDC | 84mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB1215XT |
|
1W | 12 (11.4-12.6)VDC | 15VDC | 67mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB1503XT |
|
1W | 15 (14.25-15.75)VDC | 3.3VDC | 67mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB2405XT |
|
1W | 24 (22.8-25.2)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB2412XT |
|
1W | 24 (22.8-25.2)VDC | 12VDC | 84mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB2415XT |
|
1W | 24 (22.8-25.2)VDC | 15VDC | 67mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 |
-
