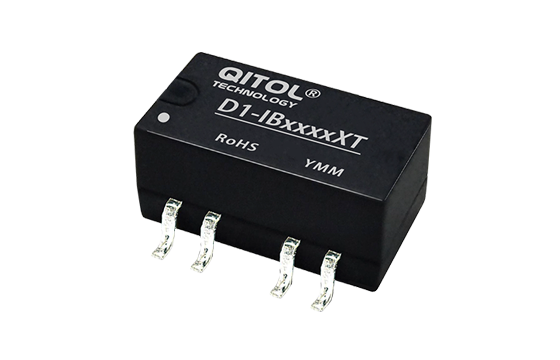

D1-IB_XT Series
• Model : D1-IB0509XT
• Power : 1W
• Input : 5 (4.75-5.25)VDC
• Vout : 9VDC
• Iout : 111mA
• No.of Outputs : 1
• Isolation : 1500VDC
• Package : SIP
• Dimension(mm) : 15.24*11.40*7.25
Download
View DatasheetDocuments
| Model | Diagram | Power | Input | Vout | Iout | No.of Outputs | Isolation | Package | Dimension(mm) | Datasheet | Sample |
|---|---|---|---|---|---|---|---|---|---|---|---|
| D1-IB0503XT |
|
1W | 5 (4.75-5.25)VDC | 3.3VDC | 303mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB0505XT |
|
1W | 5 (4.75-5.25)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB0509XT |
|
1W | 5 (4.75-5.25)VDC | 9VDC | 111mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB0512XT |
|
1W | 5 (4.75-5.25)VDC | 12VDC | 84mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB0515XT |
|
1W | 5 (4.75-5.25)VDC | 15VDC | 67mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB1205XT |
|
1W | 12 (11.4-12.6)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB1212XT |
|
1W | 12 (11.4-12.6)VDC | 12VDC | 84mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB1215XT |
|
1W | 12 (11.4-12.6)VDC | 15VDC | 67mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB1503XT |
|
1W | 15 (14.25-15.75)VDC | 3.3VDC | 67mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB2405XT |
|
1W | 24 (22.8-25.2)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB2412XT |
|
1W | 24 (22.8-25.2)VDC | 12VDC | 84mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 | ||
| D1-IB2415XT |
|
1W | 24 (22.8-25.2)VDC | 15VDC | 67mA | 1 | 1500VDC | SIP | 15.24*11.40*7.25 |
-
